Billet Aluminium Engine Oil Catch Can 2-Port


  • Protects Intercooler, Intake System, and Essential Components From Oil Blow-by
  • Separates Oil Particles From PCV/CCV Air Using 50-micron Bronze Filter
  • 100% Billet T6061 Aluminum Sealed Can
  • Internal Air Diverter Turbulates Air Longer to Improve Oil Separation
  • 1-Year Warranty

Out of stock

Billet Aluminium Engine Oil Catch Can 2-Port Tank Reservoir


More Features:


  • Separate oil and air from crankcase ventilation and protect your engine from detonation
  • Helps maintain proper octane levels to reduce potential detonation
  • Filter and can are both fully serviceable
  • Safe for pressurized applications
  • Includes 2 plastic barbed 1/2″ hose fittings
  • Universal mounting bracket for multiple configurations


The Compact Baffled Oil Catch Can is designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. This would eventually create a layer of gunk on your intake valves causing knock, pre-ignition, loss in power and loss in fuel economy as seen here.

Carbon Build up on intake valves

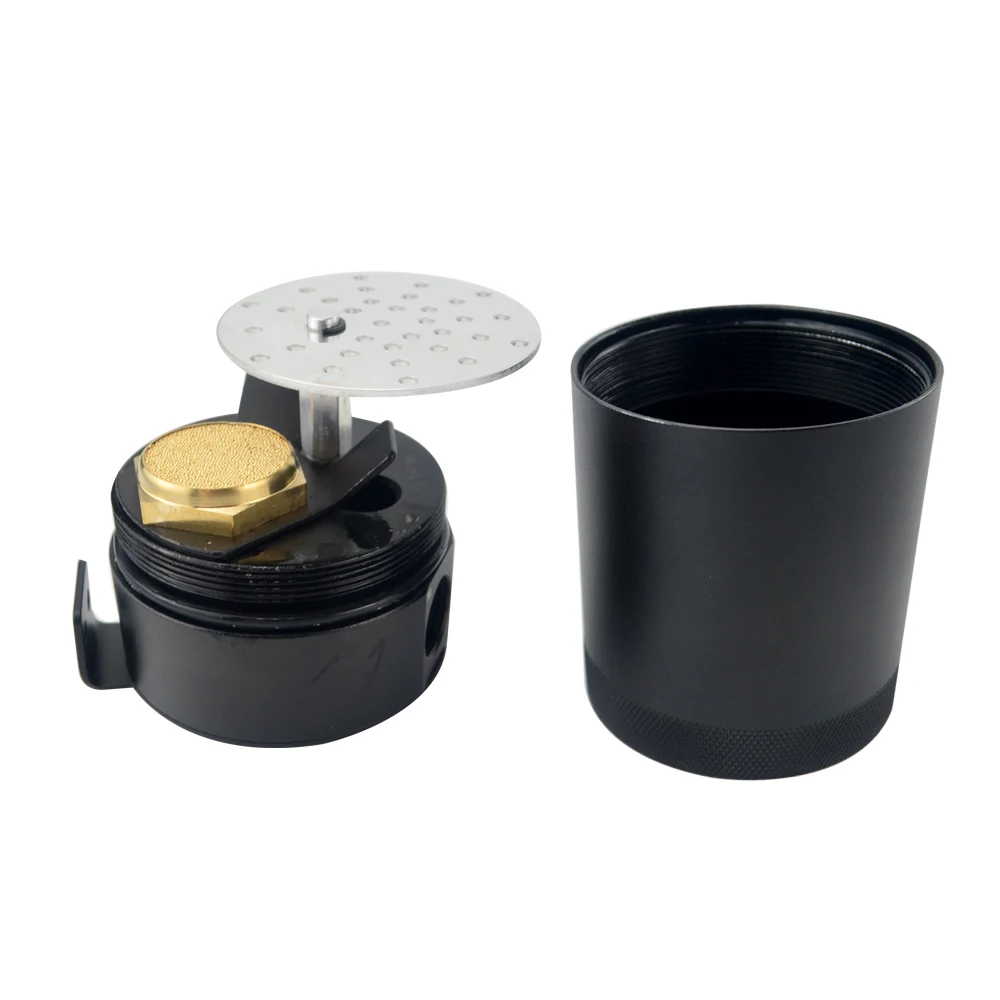

The internal air diverter turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50-micron bronze filter to the intake.


An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features two ports, one inlet and one outlet, for easy installation on PCV or CCV systems.

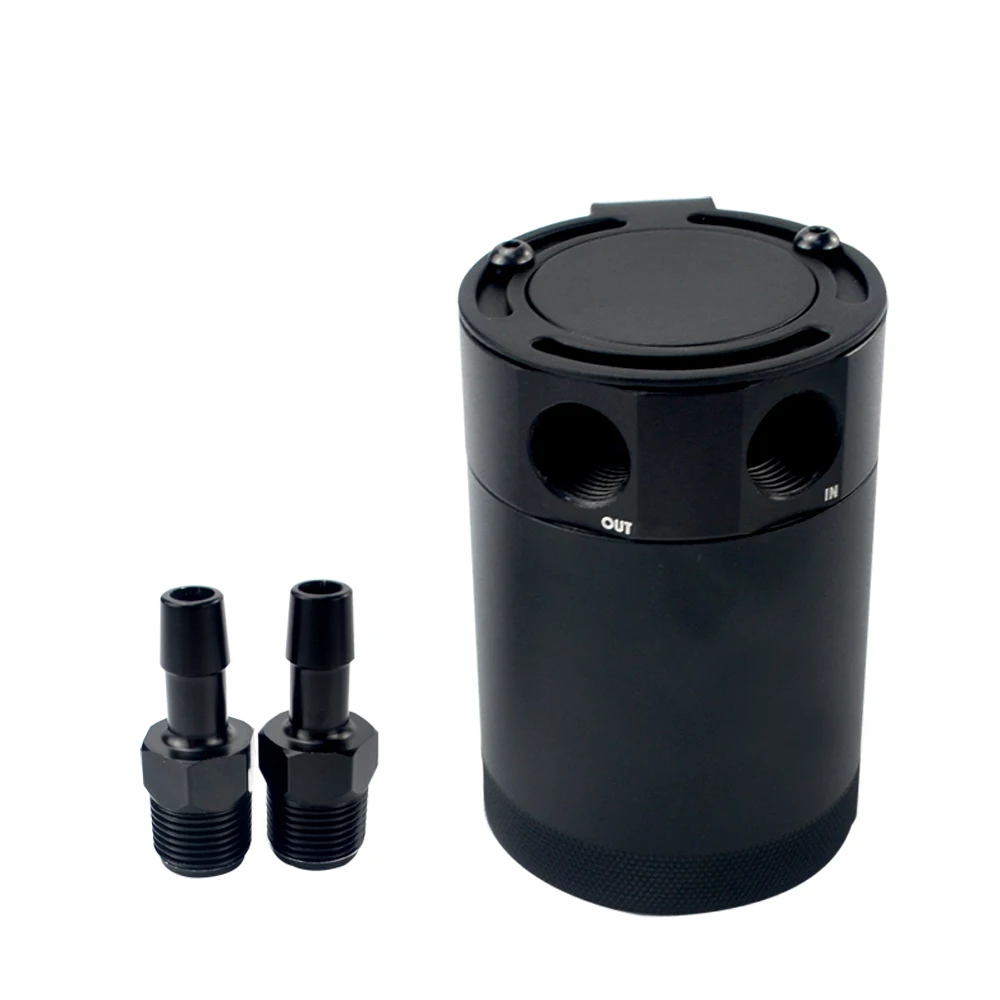

The 100 percent billet, T6061 aluminum can features 3/8″ NPT threads at the inlet, outlet, and drain area and includes two black nylon fittings to make installation effortless.


For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles.


To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. *It is not recommended to drain back to the oil pan if you are running your car in the winter months as the catch can may accumulate moisture and you would effectively be running water back to your oil pan.


The can is 100 percent washable, unlike many other cans that require you to replace your filtration system.

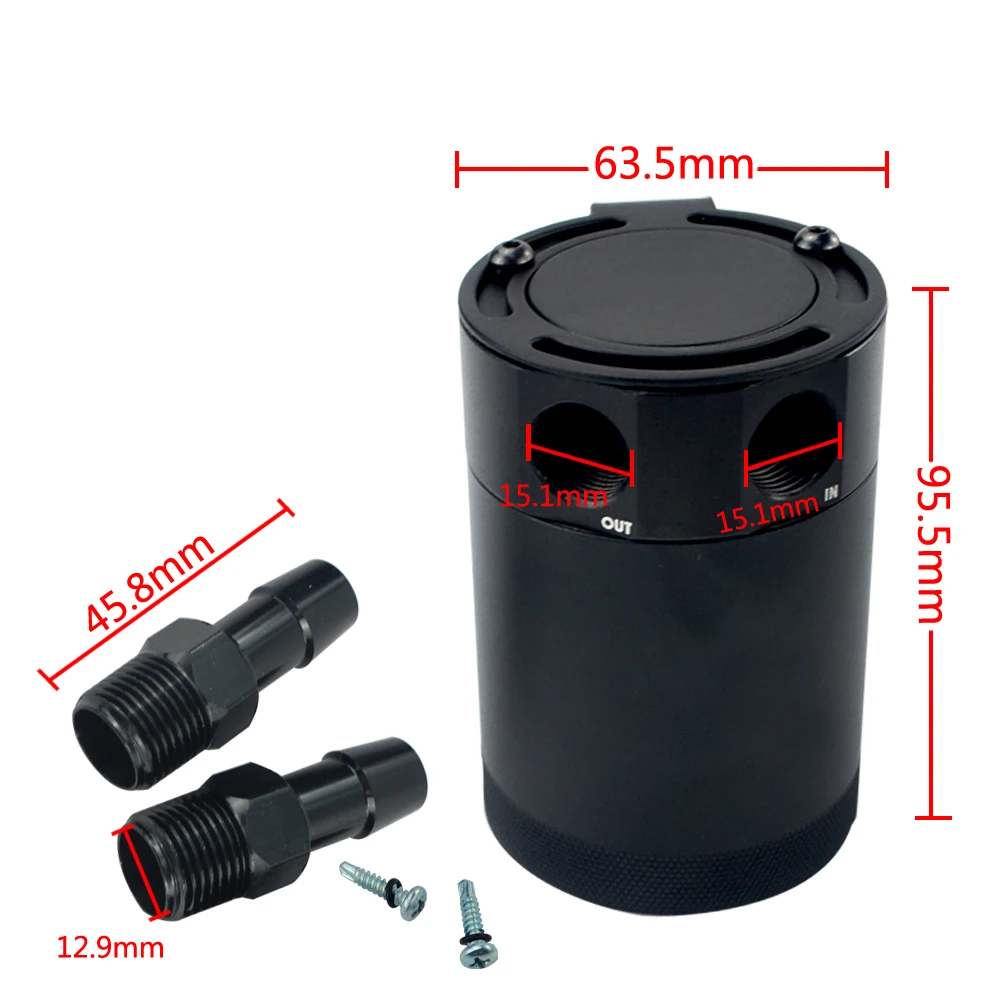

  • Overall Size: 3.80″ x 2.50″ x 2.50″
  • Inlet/Outlet: 3/8″ NPT
  • Oil Capacity: 2 fluid ounces
  • Material: T6061 Billet Aluminum


Package includes:


  • 1x Oil Catch Tank
  • 2 – 1/2″ Plastic Barbs
  • 2 – Machine Screws for Mounting


Need 3 ports or more capacity? Check out our Compact Baffled 3-Port Oil Catch Can Here or our 750ml 10AN Oil Catch Can Here


*Professional installation is strongly recommended. Installation instructions are not included.


Compact 2 Port Oil Catch Can

Compact 2 Port Oil Catch Can

Compact 2 Port Oil Catch Can

Compact 2 Port Oil Catch Can

Compact 2 Port Oil Catch Can

Compact 2 Port Oil Catch Can

Compact 2 Port Oil Catch Can

Compact 2 Port Oil Catch Can

Catch can typical installation diagram

External Testing Certification



100% billet T6061 aluminum


3.80" x 2.50" x 2.50"

Inlet/Outlet Size

3/8" NPT

Oil Capacity

2 Fluid Ounces
